Insulating Laminated

Configurations Insulating Laminated Glass.

Viracon insulating laminated glass provides the solar performance of an insulating unit, combined with the safety and security features of laminated glass.

Because the laminated component is designed to remain integral in the opening should glass damage occur, this configuration is commonly used in skylight, sloped, and impact glazing applications.

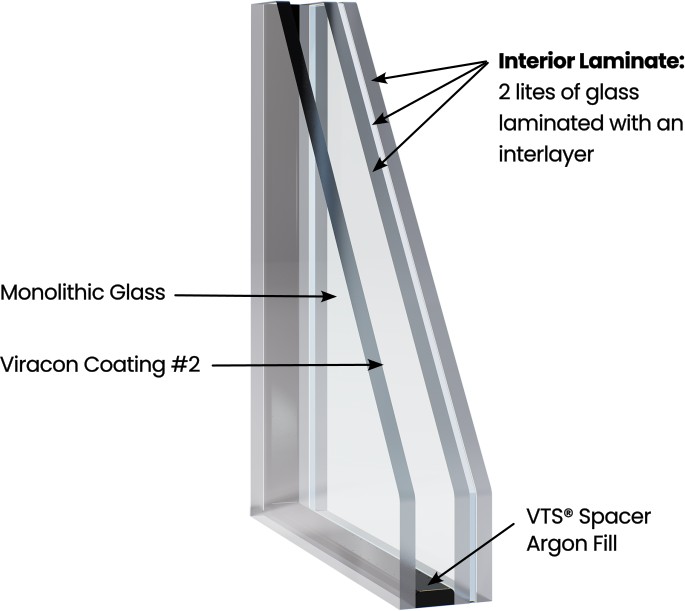

Insulating Laminated Glass

Interior Laminate

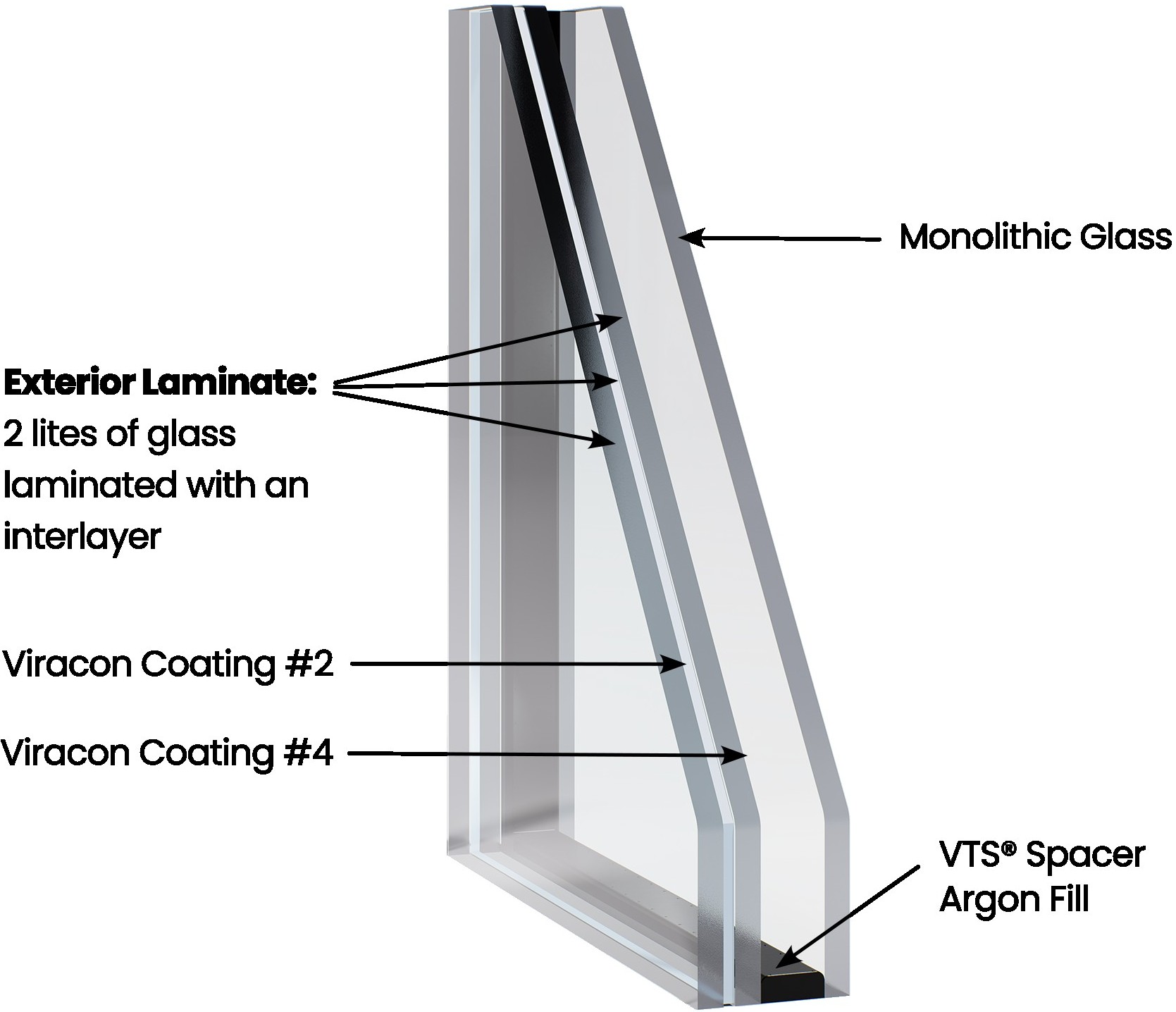

Laminated Insulating Glass

Exterior Laminate

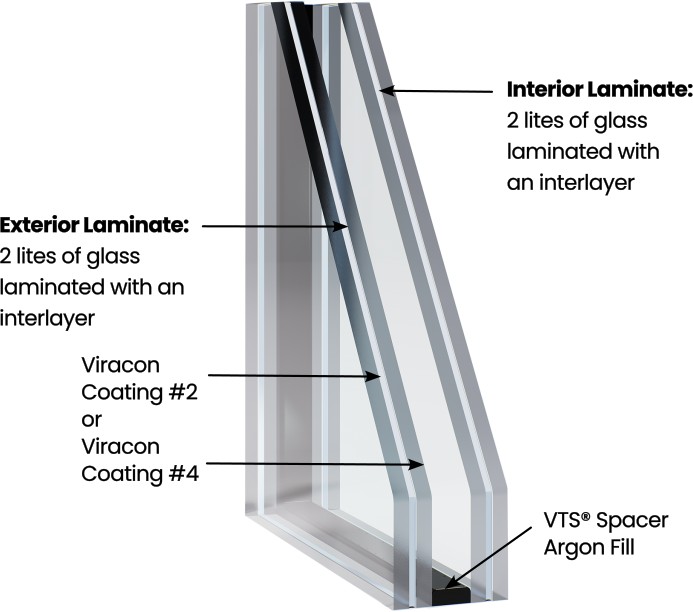

Double Laminated Insulating Glass

Interior & Exterior Laminate

Insulating Laminated GlassExplore.

Benefits

Why select insulating laminated glass by Viracon

Solar Performance

Viracon Low-E coatings provide range of SHGC values to meet strict energy codes
Balanced VLT and SHGC optimize occupant comfort
Center-of-glass U-Value is reduced, minimizing heat loss in winter and heat gain in summer
Viracon VTS® warm-edge spacer provides improved system performance
Roomside® Low-E coating on the inboard lite can enhance U-Value performance

Enhancements

Low-E coating applied on #2 surface provides excellent solar performance and appearance
Silkscreen and digitally printed patterns on the #2 surface—including bird-friendly designs—and SoarSafe first-surface etch provide versatile and creative design options
Full coverage ceramic enamel available for spandrel
Flatter glass can be achieved using a thicker outboard substrate
Vanceva colored interlayers can be combined to achieve varying layers of translucency and color

Security/Impact Protection

Enhanced laminated interlayers help protect buildings and occupants against security threats such as forced-entry, ballistics, and bomb blast
Viracon hurricane-resistant laminates meet or exceed stringent building code requirements of Florida and other coastal regions
