PrintingDigitalDistinctions®

SilkscreenDigitalDistinctions®VisionTecSoarSafe™ Laser-Etch
El Paso Clock Tower, Southwest University Park
El Paso, TX

By Viracon DigitalDistinctions®.

DigitalDistinctions combines the durability of ceramic enamel inks with the versatility of digital printing. The design possibilities and color combinations are endless, from intricate multi-color graphics to basic dot, line, and hole patterns.
Viracon applies digital prints to the #2 surface, along with a Low-E coating, for optimal solar performance, and to meet bird-friendly requirements.
Choose from a library of standard colors or work with our experts to use a custom color. DigitalDistinctions allows limitless creativity for memorable facades.

DigitalDistinctions Colors.

Viracon uses only environmentally-friendly and lead-free ceramic ink, the product of choice for color consistency and durability. Choose from a library 62 digital inks from grays to vibrant colors or let us match your color to bring your digital pattern to life.

DigitalDistinctions Opaque Gray Ink

DK0
White
DK5
Chalk Gray
DK10
Oyster Gray
DK15
Glacier Gray
DK20
Nickel Gray
DK25
Cement Gray
DK30
Shadow Gray
DK35
Stonewashed Gray
DK40
Ash Gray
DK50
Weathered Gray
DK55
Fox Gray
DK60
Rabbit Gray
DK65
Mountain Gray
DK75
Charcoal Gray
DK80
Armadillo Gray
DK85
Slate Gray
DK90
Granite Gray
DK100
Black

DigitalDistinctions Translucent Ink

1' behind glass
5' behind glass
DE1
Faux Ice
DE2
Faux Snow

DigitalDistinctions Opaque Color Ink

DB1
Skyblue
DB2
Blueberry
DB3
Blue Jay
DB4
Cobalt Blue
DRB1
Rose
DRB2
Maroon
DRB3
Plum
DRB4
Concord Grape
DBR1
Pumpkin
DRB2
Cinnamon
DBR3
Rust
DBR4
Merlot
DRO1
Orange
DRO2
Clay
DRO3
Tomato
DRO4
Brick
DOR1
Fanta
DOR2
Harvest Orange
DOR3
Amber
DOR4
Copper
DO1
Canary
DO2
Dijon
DO3
Maize
DO4
Wheat
DOG1
Spring Green
DOG2
Olive
DOG3
Fern
DOG4
Mossy
DGO1
Sage
DGO2
Bottle Green
DGO3
Pickle
DGO4
Grass Green
DG1
Spearmint
DG2
Spinach
DG3
Emerald
DG4
Jade
DGB1
Pistachio
DGB2
Dark Cyan
DGB3
Teal
DGB4
Capri
DBG1
Aquamarine
DBG2
Sea
DBG3
Turquoise
DBG4
Ocean
Color Match Icon

DigitalDistinctions Color Ink Match

Still don’t see what you’re looking for? Contact your Viracon representative for custom color matching.
Contact Us

DigitalDistinctions Patterns.

Design your own pattern or use a Viracon bird-friendly pattern with DigitalDistinctions.

Ideal Patterns for DigitalDistinctions Print

Line/Dot Patterns
Units too large for silkscreen

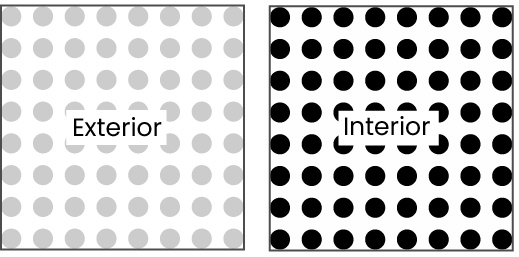

Dot-on-Dot Dual Image
Multi-Color Images

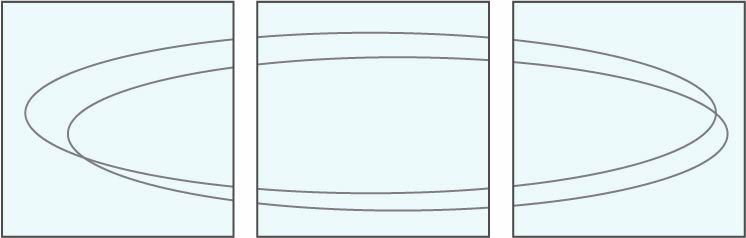

Unique Design for Each Unit
Smooth Gradient Solid
Multi-Color Design

Bird-Friendly DigitalDistinctions Patterns

Threat Factors (TF) listed are only achievable when all criteria are met. Learn more about Bird-Friendly Glass.
50956 Bird-Friendly
20% Coverage
1/4” Dots, Staggered
< 2” Spacing | TF 25
51777 Bird-Friendly
1% Coverage
1/4” Dots, 2” Inline
2x2 | TF 20
51767 Bird-Friendly
0.6% Coverage
1/4” Dots, Staggered
2x2 | TF 20
0.6% Coverage
51205 Bird-Friendly
0.6% Coverage
1/4” Dots, Inline
2x4 | TF 25
2824 Bird-Friendly
6% Coverage
1/8” Lines, 2” On-center, Horizontal or Vertical
2x2 | TF 20
20566 Bird-Friendly
3% Coverage
1/8” Lines, 4” On-center, Vertical
2×4 | TF 25
2070 Bird-Friendly
20% Coverage
1/4” Lines, 1-1/4” On-center, Horizontal or Vertical
< 2” Spacing | TF 25

Custom DigitalDistinctions Patterns

The following guidelines are intended to assist in developing a custom DigitalDistinctions pattern.
For more design guidance, explore the Printing Guidelines below.
Additional details on printing dimensions can be found on our Sizes page.
DigitalDistinctions® Pattern Guide
Maximum SizePattern TypeMaximum Coverage / Sq. Ft.Ceramic Enamel Color
Dimensions up to 130″ x 236″ (3297mm x 5994mm)
—————————————–
Unit size up to 213 Sq Ft (19.79 M2)		Full Coverage or Pattern (Minimum object or
space size = 1/16″)		100%All DigitalDistinctions® Ink
All pattern types are available with Low-E coatings on the same surface.

Custom Patterns

Contact your Viracon representative for assistance with a custom pattern.
Contact Us
Review Viracon’s Art File and CAD File Requirements spec.
Get Art Spec
Ready to print? Upload your art file.
Upload Art File

DigitalDistinctionsExplore.

Design

Offers a wide range of design opportunity to customize the building facade, from simple patterns to custom patterns.

Comfort

Use DigitalDistinctions designs to improve occupant comfort by reducing glare and lowering the SHGC.

Privacy

Dense or full coverage patterns can be used in applications where privacy is required.

Bird-Friendly

Dot and line patterns can be used to meet stringent bird-friendly requirements.

Specifying Printed Glass

Images may be applied to any surface except the exterior (#1) surface. A Low-E coating can be applied to the same surface as the printing. Units with printing should be utilized in applications where the printed surface is protected from exterior elements. The units should not be installed in applications where the printed surface will be exposed to an outdoor environment.
Printing to Edge of Glass
Digital printing in combination with a Low-E coating requires a minimum 3/8″ (9.525mm) clear, enamel-free border around all edges.
Moiré
Placing a pattern or image on two surfaces within an insulating unit is feasible, however, extreme caution should be taken during the design process to minimize the potential for a moiré pattern to appear. Moiré is an optical phenomenon that typically appears as a wavy, rippled or circular pattern. It is formed when two regularly spaced, non-aligned patterns overlap. Moiré is not a defect in the glass or the printing process but rather a pattern formed by the eye. For additional information, please review Viracon’s Ceramic Enamel and Ink Visual Characteristics Tech Talk.

Gallery

See more Viracon projects in our gallery
